THE DISPLAY HOUSING  WILL  ROTATE AROUND THE SHAFT.  YOU HAVE NOT BROKEN ANYTHING.  THIS LETS YOU SEE THE DISPLAY BETTER.

THE DISPLAY HOUSING WILL ROTATE AROUND THE SHAFT.

YOU HAVE NOT BROKEN ANYTHING.

THIS LETS YOU SEE THE DISPLAY BETTER.

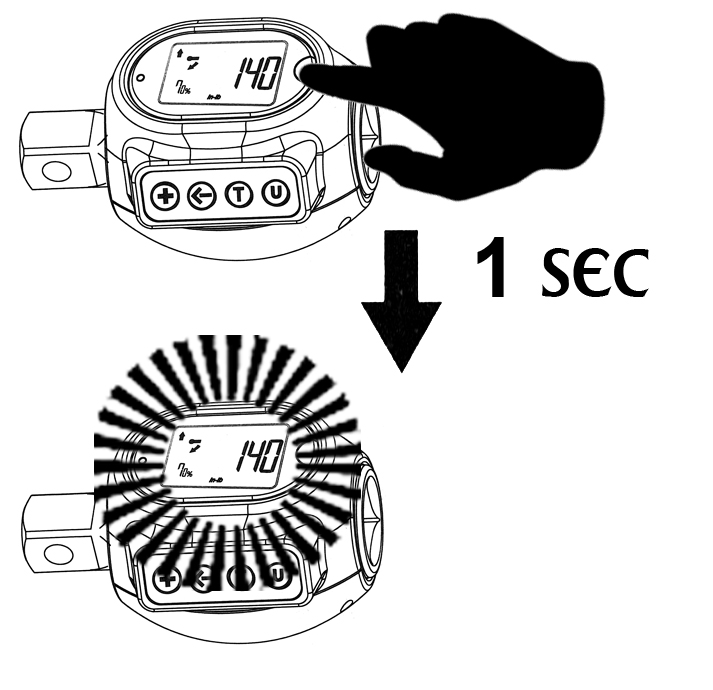

 PRESS THE (M) BUTTON FOR 1 SECOND TO LIGHT UP THE DISPLAY  PRESS AGAIN TO TURN OFF.

PRESS THE (M) BUTTON FOR 1 SECOND TO LIGHT UP THE DISPLAY

PRESS AGAIN TO TURN OFF.

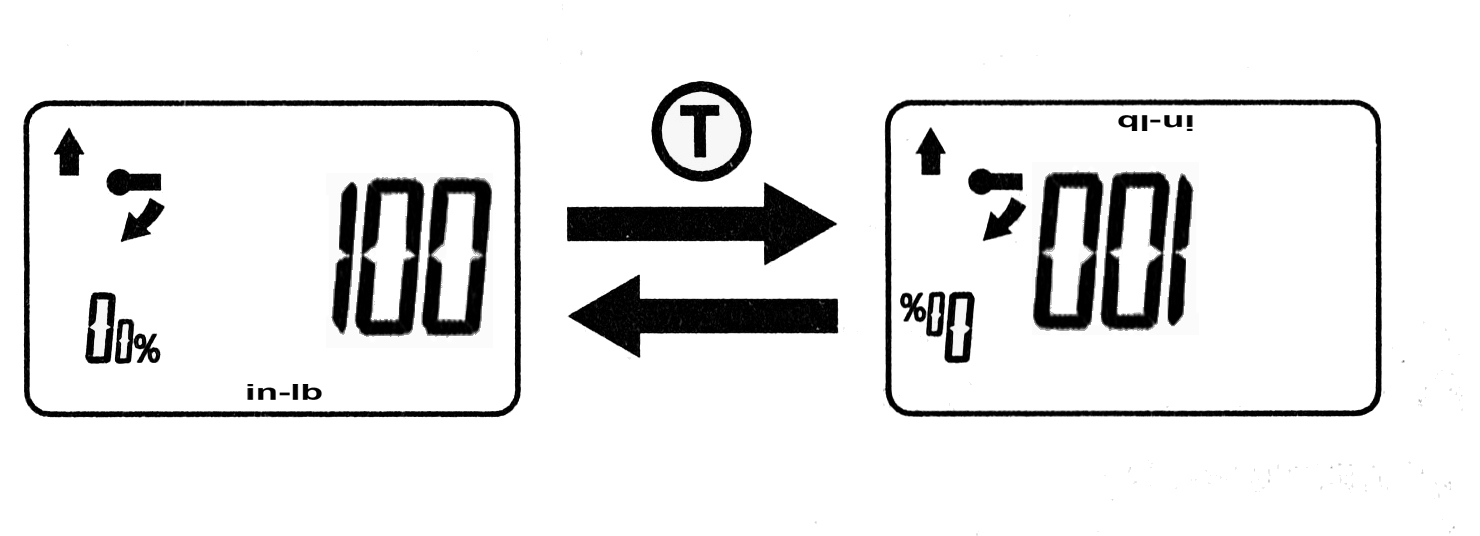

 PRESS THE (T) BUTTON FOR 2 SECONDS TO FLIP THE DISPLAY UPSIDE-DOWN FOR EASIER VIEWING FROM EITHER SIDE

PRESS THE (T) BUTTON FOR 2 SECONDS TO FLIP THE DISPLAY UPSIDE-DOWN FOR EASIER VIEWING FROM EITHER SIDE

 BATTERY SYMBOL APPEARS AT UPPER RIGHT WHEN THE BATTERY IS LOW.  IF BATTERY SYMBOL FLASHES, REPLACE THE BATTERY SOON!

BATTERY SYMBOL APPEARS AT UPPER RIGHT WHEN THE BATTERY IS LOW.

IF BATTERY SYMBOL FLASHES, REPLACE THE BATTERY SOON!

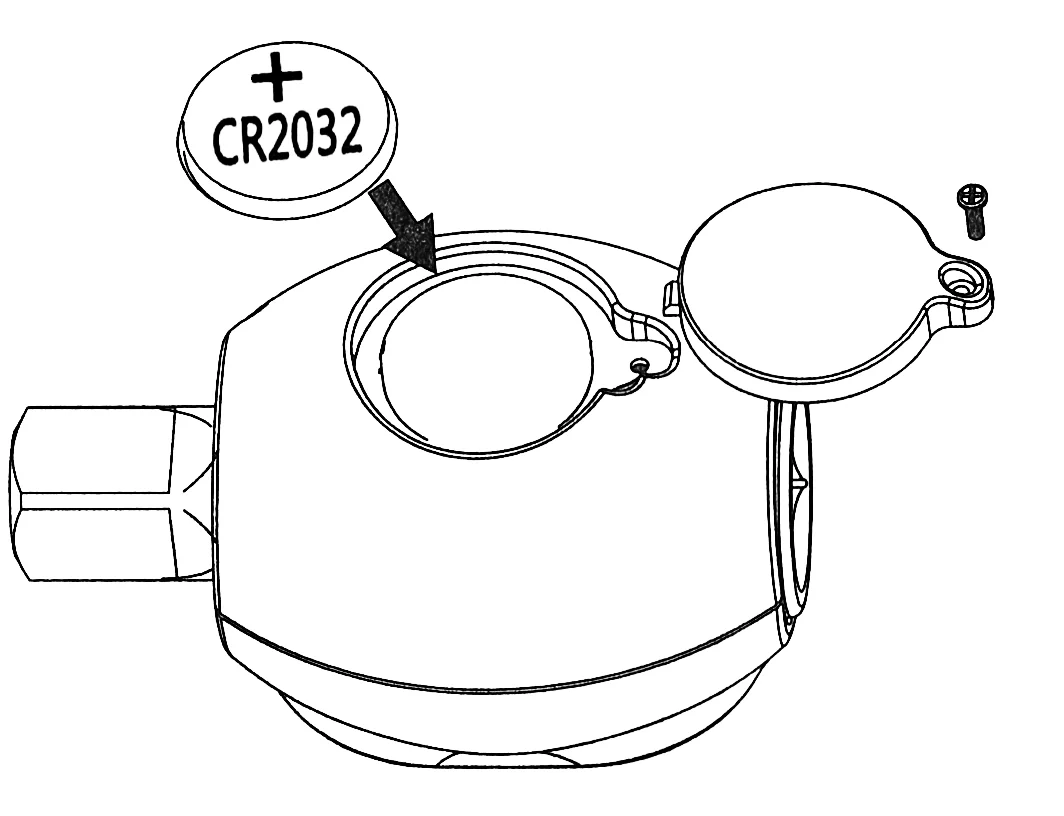

 TO CHANGE BATTERY, USE A SMALL PHILLIPS SCREWDRIVER TO REMOVE COVER SCREW

TO CHANGE BATTERY, USE A SMALL PHILLIPS SCREWDRIVER TO REMOVE COVER SCREW

 USE CR2032 OR EQUAL.  INSTALL WITH PLUS SIDE UP.    REPLACE COVER AND SCREW.

USE CR2032 OR EQUAL.  INSTALL WITH PLUS SIDE UP.

REPLACE COVER AND SCREW.

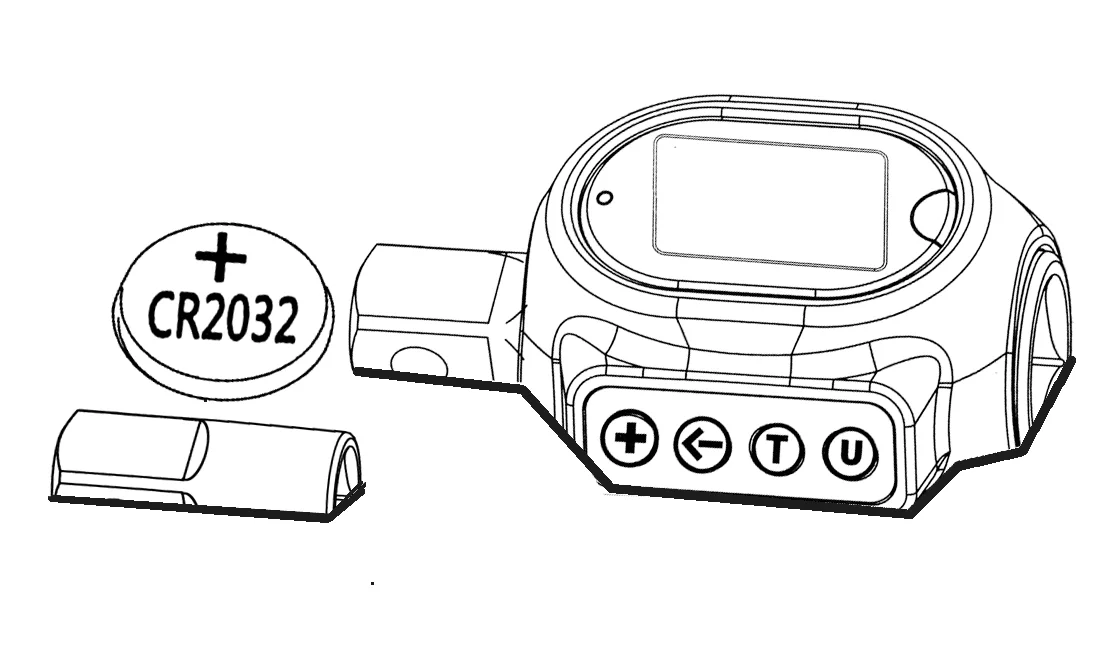

 A spare battery can be stored in the round niche in the case

A spare battery can be stored in the round niche in the case

initial set-up

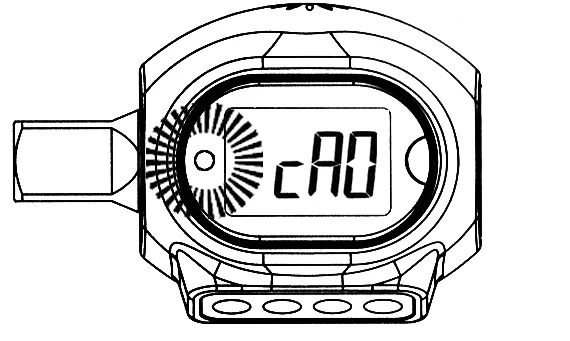

 press pOWER buTTON TO tURN ON

press pOWER buTTON TO tURN ON

 liGHT LIGHTS, BEEPER BEEPS, DISPLAY DISPLAYS

liGHT LIGHTS, BEEPER BEEPS, DISPLAY DISPLAYS

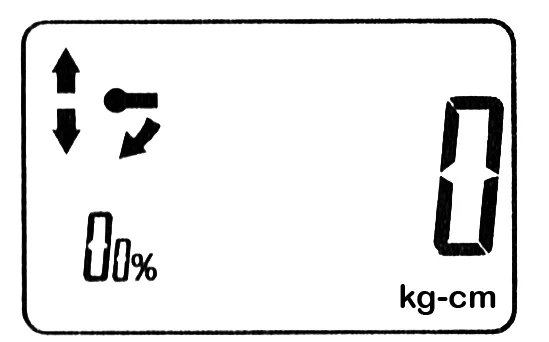

 INITIAL DISPLAY LOOKS LIKE THIS

INITIAL DISPLAY LOOKS LIKE THIS

 PRESS "u" BOTTON TWICE

PRESS "u" BOTTON TWICE

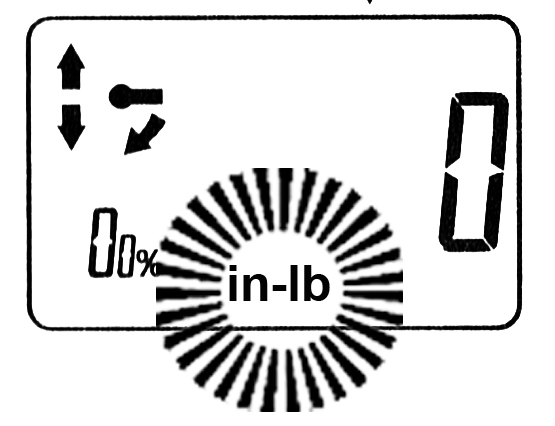

 diSPLAY CHANGES TO "IN-lb" LIKE ABOVE

diSPLAY CHANGES TO "IN-lb" LIKE ABOVE

 PRESS "t" BUTTON ONCE TO CHANGE UP AND DOWN-POINTING ARROWS AT FAR LEFT

PRESS "t" BUTTON ONCE TO CHANGE UP AND DOWN-POINTING ARROWS AT FAR LEFT

 ONLY ARROW POINTING UP SHOULD REMAIN ON DISPLAY

ONLY ARROW POINTING UP SHOULD REMAIN ON DISPLAY

THIS SET-UP NEED NOT BE REPEATED UNTIL BATTERY IS CHANGED
